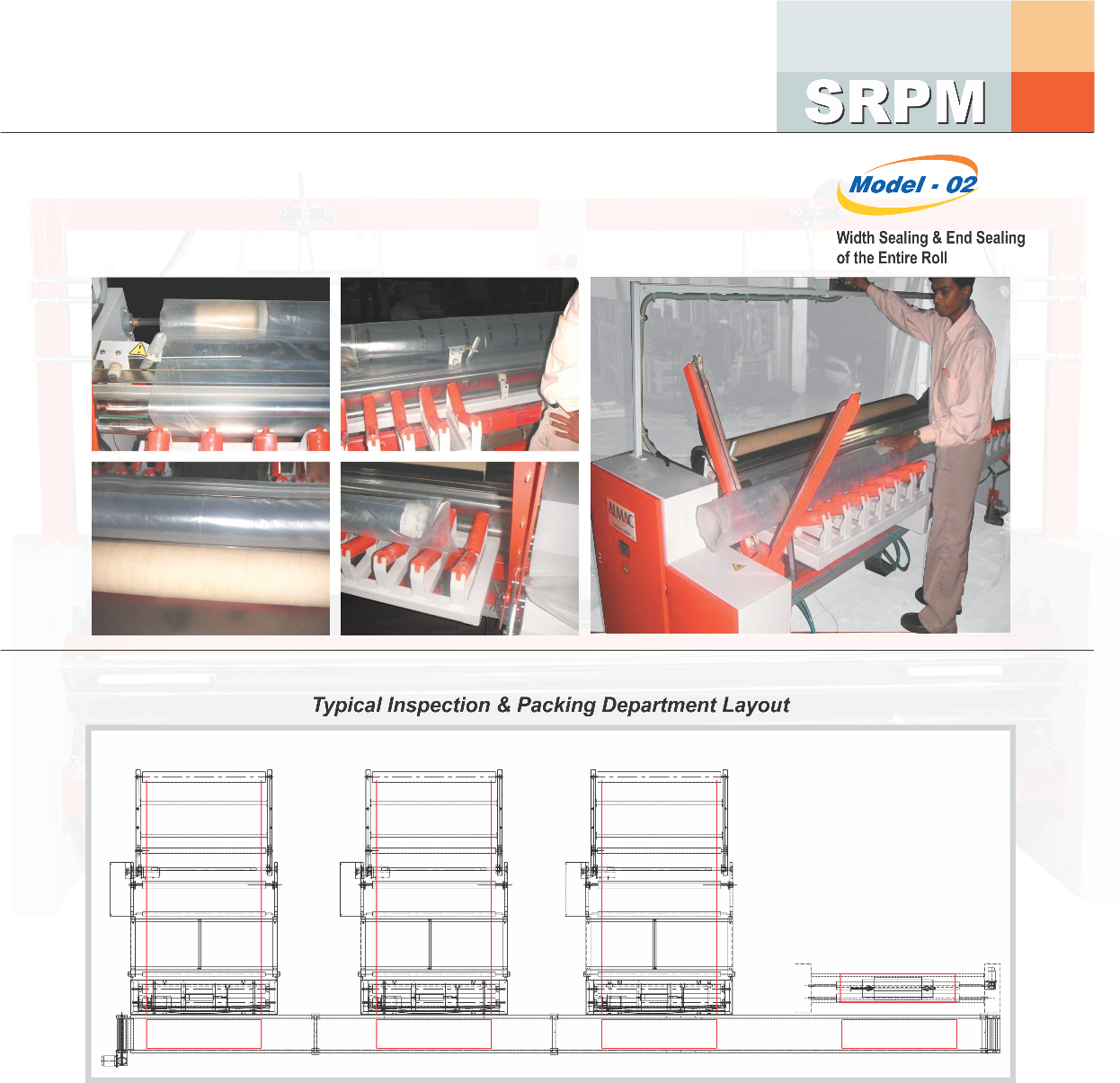

Semi-Automatic Roll Packing Machine

Application

  • ALMAC has designed and developed Semi-Automatic Roll Packing Machines to suit all types of applications. We engineer machines that allow packing of rolls made from any type of fabrics and are designed to give excellent quality of packing at high speeds. Online use of our packing machine with inspection machines makes the inspection department layout very simple and efficient.
  • Give us your module mix and we will integrate them in just the right way to suit your needs.

Features

  • Machine can be fed with rolls from several inspection machines online or can be used standalone for offline packing
  • Rolls are packed in heat shrinkable polythene
  • Semi-automatic with one operator operation
  • Excellent quality at high speed
  • Widthwise sealing of plastic along the length of rolls
  • Rolls ends can either be sealed and / or heat shrunken
  • Any number of layers of polythene can be wound on the fabric roll
  • Complete machine is plc operated

Technical Specifications

  • Machine speed: 30 to 60 rolls per hour
  • 1500 — 4000 mm sizes engineered by us
  • Min. & max. roll diameter: 150 mm to 600 mm
  • Max. roll weight: 150 kgs
  • Power requirements as per country of use

Options

  • BarcodeMAC : Barcode label printer & reader
  • WeighMAC : Electronic weighing of small rolls with an accuracy of +50 grams
  • Online or Offline design
  • Layout design with complete automation solutions
