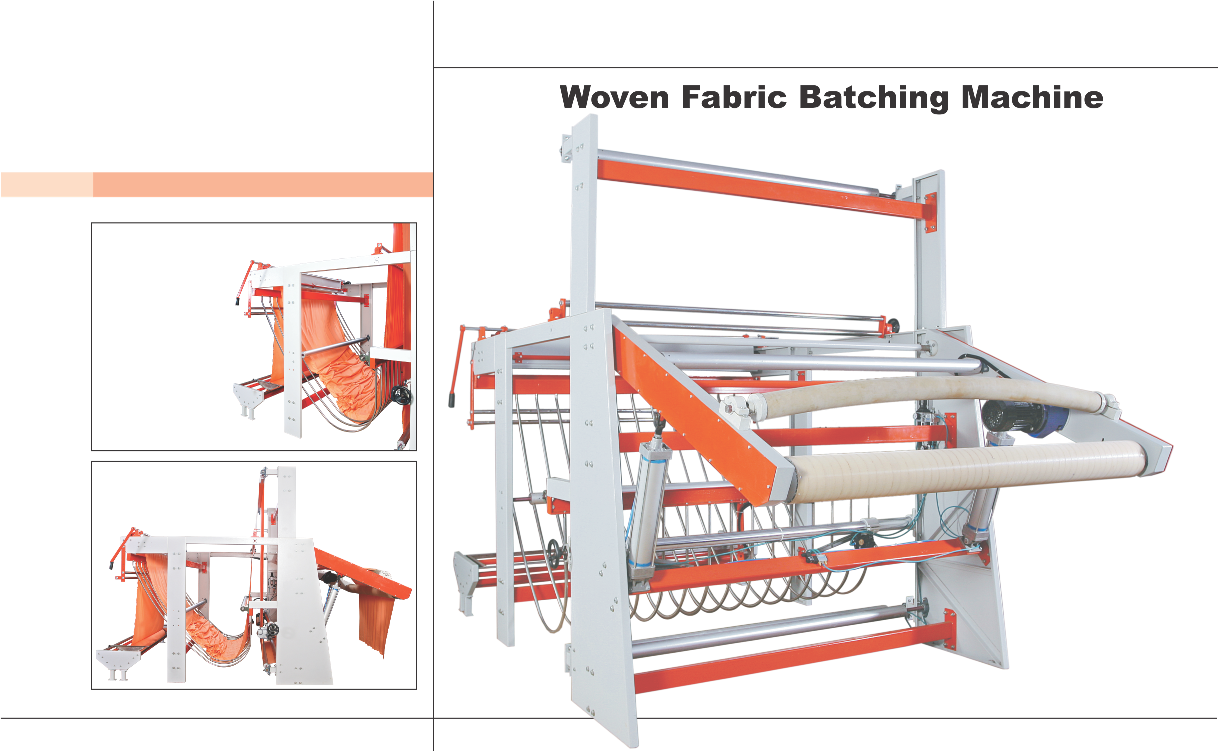

Woven Fabric Batching Machine

Application

  • ALMAC has designed and developed Fabric Batching Machines to suit all types of applications. These machines can either be used independently or can be combined with any other processing machine. Our Brushing & Beating Machine can be combined with these machines which allow removal of lint from the fabric. We engineer machines that allow batching of any type of woven fabrics and are designed to control tension in the most elastic to heaviest fabrics like industrial textiles weighing up to 1000 gsm.
  • Give us your module mix and we will integrate them in just the right way to suit your needs.

Features

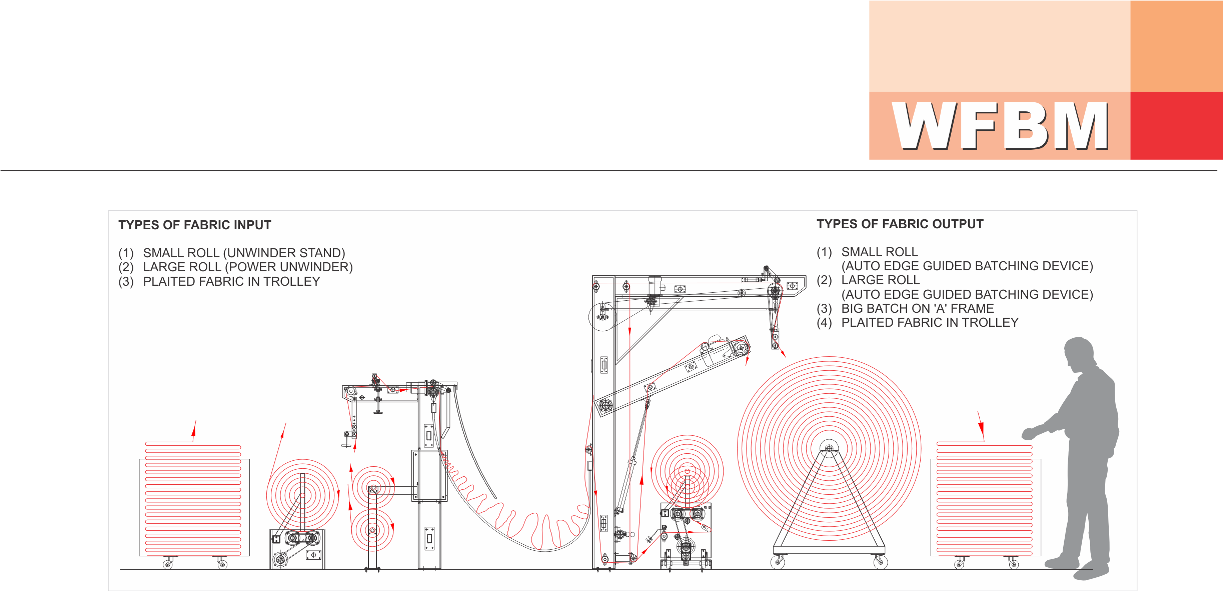

  • Various models available allow Input from Plaited, Small Rolls & / or Large Rolls and Output in Small Rolls, Large Rolls & / or Batch on A-Frames
  • Forward & Reverse (not full) movement of fabric
  • Face In / Face Out operation
  • Jog / Run operation with instantaneous Start & Stop
  • Piece End Detector automatically stops machine
  • High entry with E+L Guiders for Centering of fabric
  • Tensioning device and guide rollers add adequate amount of tension in fabric
  • All guide rollers made from Aluminum thus rust free for life
  • Crease free winding of fabric
  • Compact Rolls due to differential ratio of the batcher rolls
  • Perfect Edge Guidance with Accurate Length Measurement
  • Inverters with built in PLC Drive our Machines

Technical Specifications

  • Variable Speed from 0 – 60 meters / min
  • 1500 – 6000 mm sizes engineered by us
  • Power requirements as per country of use

Options

  • LengthMAC : Extremely accurate electronic length measurement giving accuracy of +0.01%
  • PredetermineMAC : Automatic machine stop at preset length
  • OpticutMAC : Optimised cut map generator
  • BrushbeatMAC : Brushing & Beating Device
  • BarcodeMAC : Barcode label printer & reader
  • J-ScrayMAC : J-Scray Fabric Accumulator for Uninterrupted Operation
  • RailsewMAC : Semi-automatic railway sewing system
  • AutocutMAC : Auto cross cutter
  • SelvedgeshiftMAC : Automatic fabric & selvedge shifter for thick selvedges
  • WeighMAC : Electronic weighing of small rolls with an accuracy of +50 grams
  • UnwindMAC : Two roll surface unwinder
  • PowerunwindMAC : Positively driven power unwinder for Large Rolls
  • AutonipMAC : Automatically operated nip rollers
  • HandsfreeMAC : Foot pedal operation
  • ComfortMAC : Sliding operator chair
